PRODUCT DETAILS

Description

NeoFlash HAT is specifically designed for M5StickC, it is an RGB LED matrix. Space on PCB board is 58x23.5mm and total include 126 RGB LEDs. Every single RGB LED is programmable, which allows you setting the colors and brightness, plus on the 7*18 matrix layout, you will have a nice experience on either display digital numbers or colorful light effect.

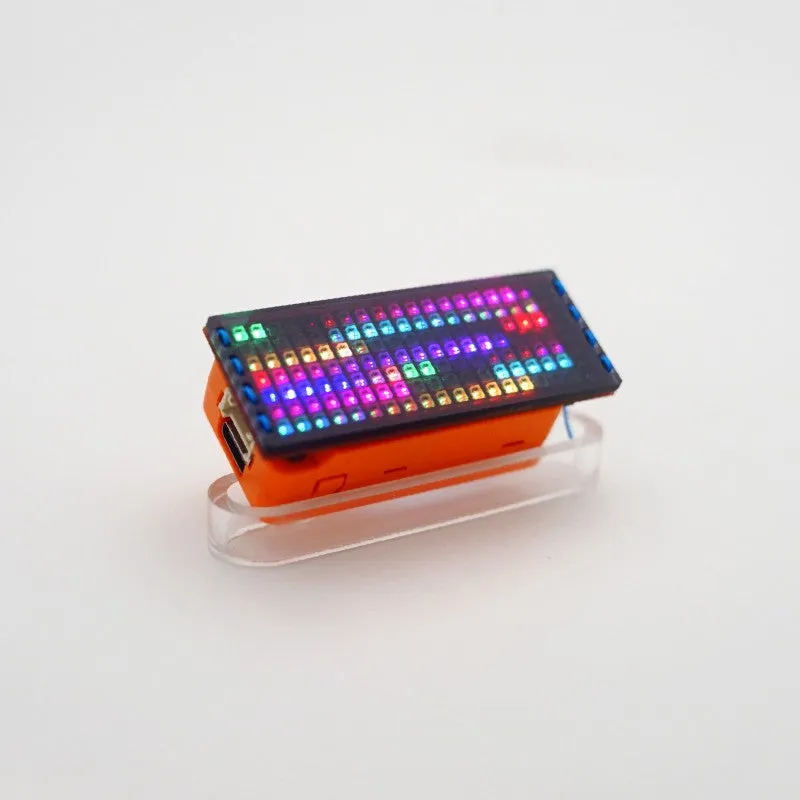

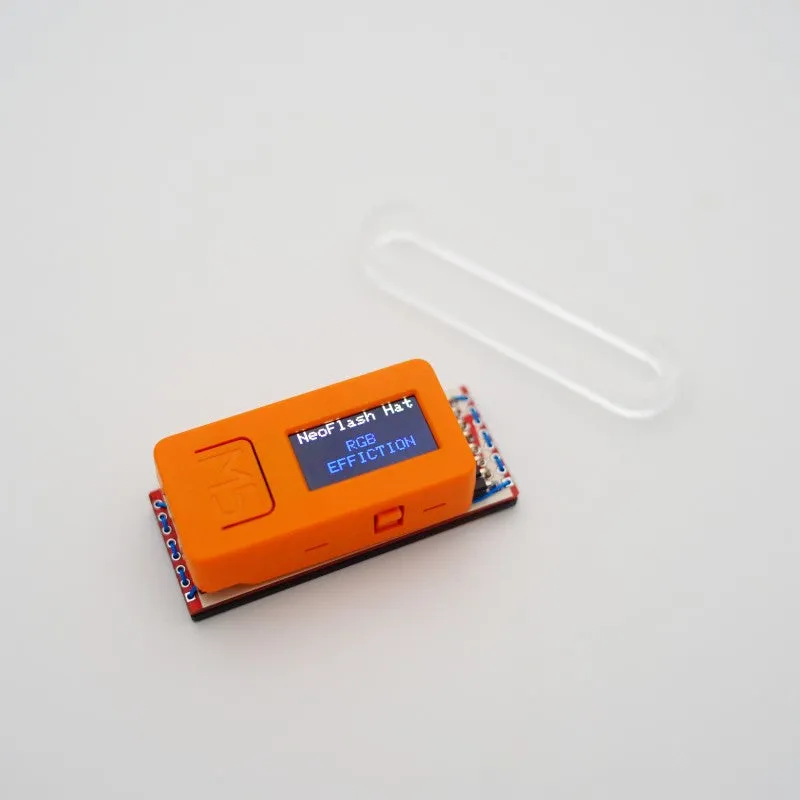

We even prepared a dark brown acrylic board to cover on the NeoFlash board for better effect. We also provide two types of pin set with a 90-degree bend so that you can attach the NeoFlash board onto M5StickC in different ways. If you thinking about adding a display on your project, NeoFlash is a good choice.

This product is EOL now.

Product Features

• Primordial three basic colors for each pixel
• Total brightness levels: 0-255
• Achievable of 16777216 completed all-color display.
• 24-bit RGB data: 8-bit for each color
• RGB LED Quantity: 126 pcs
• Hole Distance: 0.1 in-(2.54 mm)
• Hole Dimension: 0.039 "1mm (CNC Factory)

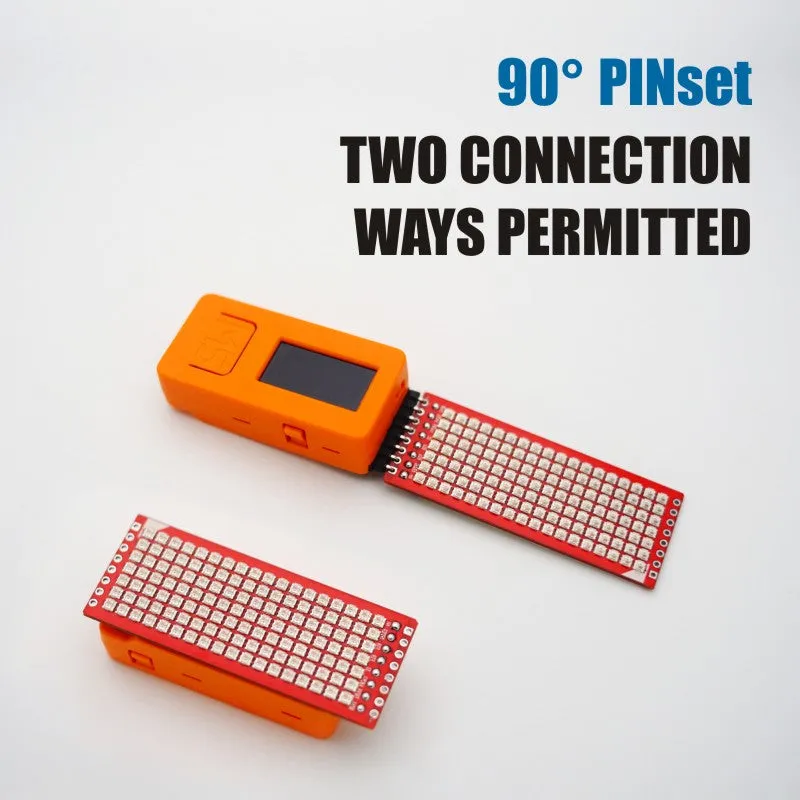

• Assembly Approach: back to back (default) / horizontal contact

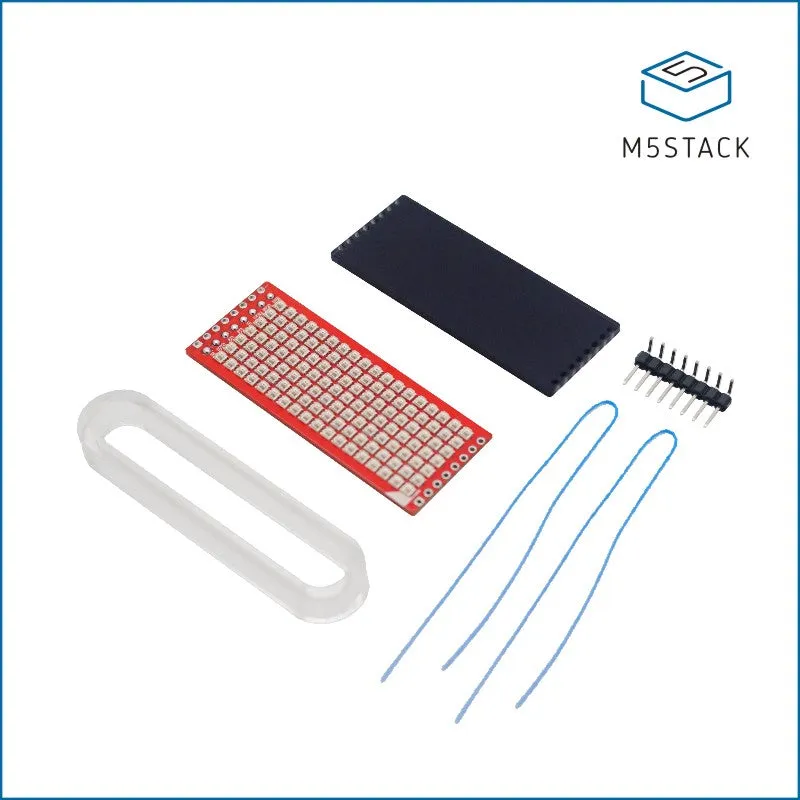

Include

• 1x Neoflash HAT
• 2x 8 pin 2.54mm bend pin set（90°）
• 1x 2mm dark brown acrylic board
• 2x 15cm string (#71、0.4mm)

Applications

• LED Matrix Display

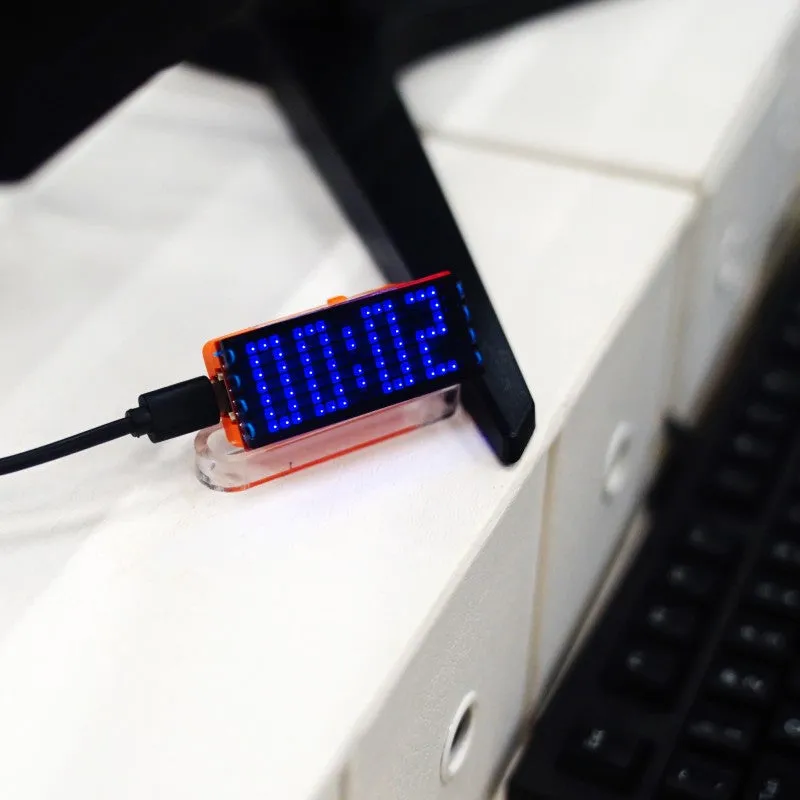

• Digital Clock
• Colorful Led Display

Specification
